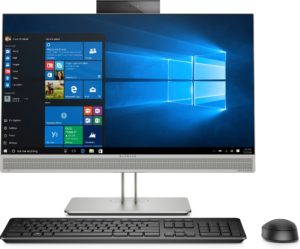

HP EliteOne 800 G5 23.8-in Healthcare Edition All-in-One

Description

HP Data Sheet
AMS DT – HP EliteOne 800 G5 23.8-in Healthcare Edition All-in-One Datasheet EN 11-2019
Operating system
Windows 10 Pro 64
Processor
Intel® Core™ i5-9500 vPro™ processor with Intel® UHD Graphics 630 (3 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores)[6,7]
[6] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
[7] Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See http://www.intel.com/technology/turboboost/ for more information.
Chipset
Intel® Q370 (vPro); Intel® Q370 (non-vPro)
Graphics
Integrated: Intel® UHD Graphics 630
Display
23.8″ diagonal FHD IPS widescreen WLED-backlit glass covered touch screen (1920 x 1080)[19,38]
[19] All Healthcare Models are Touch.
[38] Brightness (typical): 285 nits (non-Privacy); 400 nits (Privacy).
Memory
8 GB DDR4-2666 SDRAM (1 X 8 GB)
Memory slots
2 SODIMM
Hard drive
256 GB PCIe® NVMe™ SSD
Storage acceleration
8 GB NVMe™ Intel® Optane™ Memory for storage acceleration[26]
[26] Intel® Optane™ memory is sold separately. Intel® Optane™ memory system acceleration does not replace or increase the DRAM in your system. Available for HP commercial desktops and notebooks and for select HP workstations (HP Z240 Tower/SFF, Z2 Mini, ZBook Studio, 15 and 17 G5) and requires a SATA HDD, 7th Gen or higher Intel® Core™ processor or Intel ® Xeon® processor E3-1200 V6 product family or higher, BIOS version with Intel® Optane™ supported, Windows 10 version 1703 or higher, M.2 type 2280-S1-B-M connector on a PCH Remapped PCIe Controller and Lanes in a x2 or x4 configuration with B-M keys that meet NVMe™ Spec 1.1, and an Intel® Rapid Storage Technology (Intel® RST) 15.5 driver.
Network interface
Integrated Intel® I219LM GbE LOM
Intel® Wi-Fi 6 AX200 and Bluetooth® 5 Combo, vPro™
Power supply
180 W internal power supply, up to 90% efficiency, active PFC
External I/O Ports
Rear:1 audio-out; 1 DisplayPort™ 1.2; 1 HDMI; 1 power connector; 1 RJ-45; 1 SuperSpeed USB Type-C® 10Gbps signaling rate; 2 SuperSpeed USB 5Gbps signaling rate; 4 SuperSpeed USB 10Gbps signaling rate
Left side:1 headphone; 1 headset connector
Optional:1 SD 4 card reader
Expansion slots
1 M.2 2230; 2 M.2 2230/2280[12]
[12] (2) M.2 Socket 3 Type 2230/80-M.

1 PCIe M.2 2230 slot for WLAN and 2 PCIe M.2 2230/2280 slot for storage.
Energy efficiency
ENERGY STAR® certified
Webcam
2 MP FHD IR webcam and 2 MP webcam, maximum resolution of 1920 x 1080[6]
[6] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
Audio
Audio by Bang & Olufsen, headset and headphone side ports (3.5 mm), line out rear port (3.5 mm), high performance integrated stereo speakers
Form factor
All-in-one
Keyboard
HP USB Healthcare Edition Keyboard and Mouse Combo
Dimensions (W X D X H)
21.24 x 2.1 x 13.5 in
Weight
14.1 lb
Warranty
3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Software included
Absolute Persistence module; HP Hotkey Support; HP Noise Cancellation Software; HP Secure Erase; HP Support Assistant; Native Miracast Support; Buy Office (sold separately); HP Image Assistant Gen4
Security management
Administrator password (via BIOS); DriveLock; Hood sensor; HP BIOSphere with Sure Start; HP Client Security Suite Gen 5; HP Power On Authentication; HP Sure Click; HP Sure Recover; HP Sure Sense; HP Sure Start Gen 5; Master Boot Record Security; Power-on password (via BIOS); RAID configurations; SATA port disablement (via BIOS); Serial enable/disable (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 – Common Criteria EAL4+ Certified); USB enable/disable (via BIOS); Dual band RFID card reader (optional)
