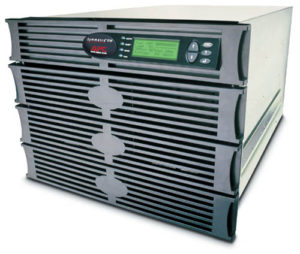

APC Symmetra RM 2kVA Scalable to 6kVA N+1 220-240V

Description

Output
Output power capacity
1.4 KWatts / 2.0 kVA

Max Configurable Power (Watts)
4.2 KWatts / 6.0 kVA

Nominal Output Voltage
230V

Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load
89.0 %

Output Voltage Distortion
Less than 5% at full load

Output Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal

Output Frequency (not synced)
50Hz +/- 0.1% for 50Hz nominal

Load Crest Factor
up to 5 : 1

Topology
Double Conversion Online

Waveform type
Sine wave

Output Connections
(2) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Bypass
Internal Bypass (Automatic and Manual)

Input
Nominal Input Voltage
230V

Input frequency
50/60 Hz +/- 5 Hz (auto sensing)

Input Connections
Hard Wire 3-wire

Input voltage range for main operations
155 – 276V

Number of Power Cords
1

Efficiency at Full Load
89.0 %

Input Power Factor at Full Load
0.98

Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules
1

Typical recharge time
4hour(s)

Replacement Battery
SYBT2

Battery Slots Empty
4

Expected Battery Life (years)
3 – 5

Replacement battery cartridge note
UPS accepts 1-4 additional battery packs

Extendable Run Time
1

Battery Volt-Amp-Hour Capacity
612

Extended Run Options
APC-Symmetra-RM-2kVA-Scalable-to-6kVA-N-1-220-240V

Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s)
DB-9 RS-232 , RJ-45 10/100 Base-T

Pre-Installed SmartSlot™ Cards
AP9631

Control panel
Multi-function LCD status and control console

Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)
Yes

Available SmartSlot™ Interface Quantity
1

Physical
Maximum Height
356mm , 35.6cm

Maximum Width
483mm , 48.3cm

Maximum Depth
730mm , 73.0cm

Rack Height
8U

Net Weight
74.55kg

Shipping weight
84.09kg

Shipping Height
508mm , 50.8cm

Shipping Width
584mm , 58.4cm

Shipping Depth
787mm , 78.7cm

Color
Black

Environmental
Operating Environment
0 – 40 °C

Operating Relative Humidity
0 – 95 %

Operating Elevation
0-3000meters

Storage Temperature
-15 – 45 °C

Storage Relative Humidity
0 – 95 %

Storage Elevation
0-15000meters

Audible noise at 1 meter from surface of unit
60.0dBA

Online thermal dissipation
590.0BTU/hr

Conformance
Approvals
C-tick, CE, EN 50091-2, EN 60950, IRAM, VDE

Standard warranty
2 years repair or replace, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status
RoHS
Compliant

REACH
REACH: Contains No SVHCs
